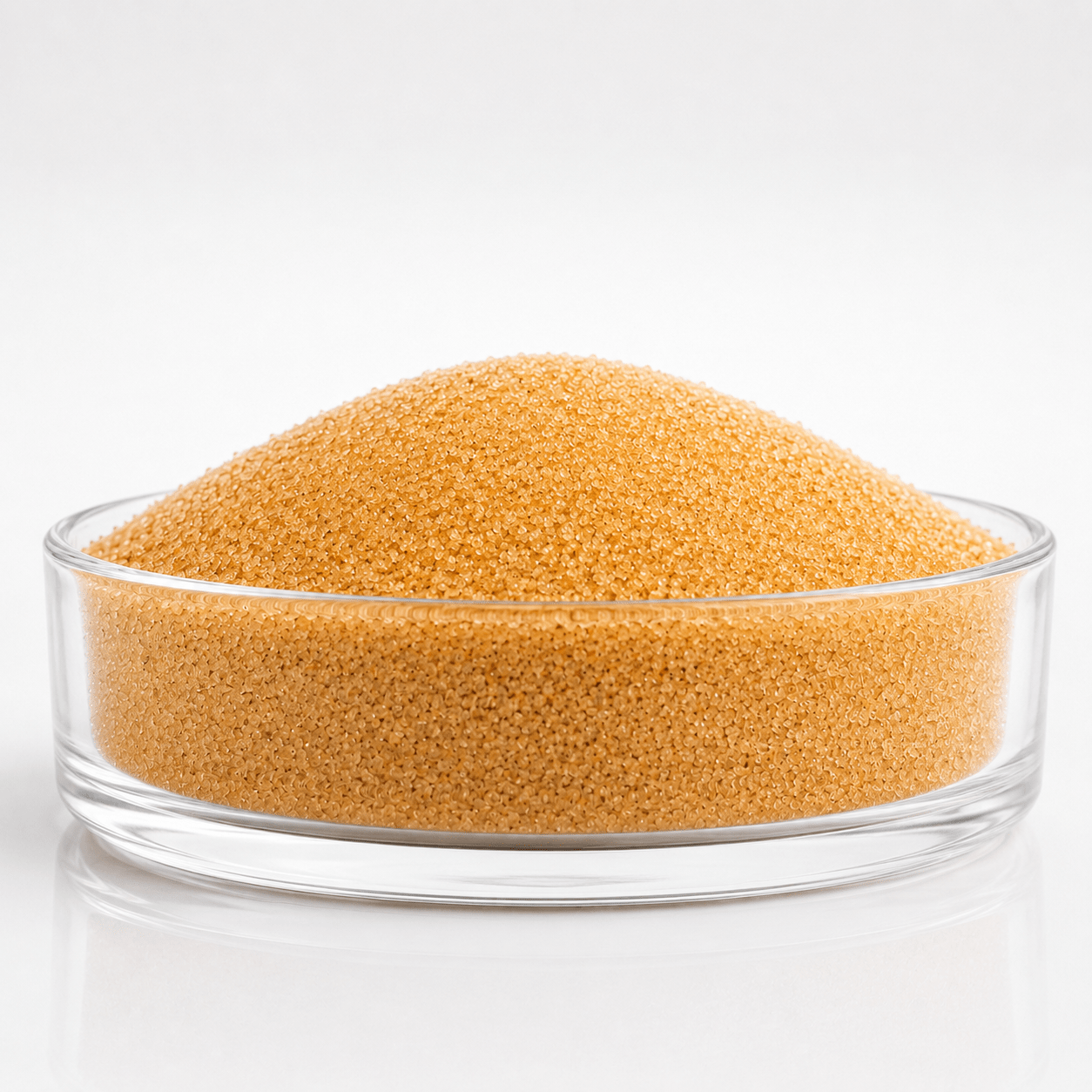

Rășină schimbătoare de ioni, pentru dedurizare – PRC108E
STRONG ACID CATION EXCHANGE RESIN, GEL STRUCTURE
1.0 Indexes of Physical and Chemical Properties:
Designation: PRC108E
- Volume Exchange Capacity eq/l≥ : 2.0 minimum
- Water Retention % : 43-48
- Bulk Density g/ml : 0.78-0.88
- Specific Density g/ml 1.26-1.30
- Particle Size % : (0.4-1.25)mm≥95%
- Homogeneous Coefficient ≤ : 1.60 max
- Roundness after Attrition %≥ : 90 min
- Appearance : Light yellow to brown
- Ionic Form Supplied: Na
2.0 Reference Indexes for Operation:
2.01 PH Range: 0-14
2.02 Max. Operating Temp (°C): H+ ≤100°C Na+ ≤120°C
2.03 Total Reversible Swelling %: (Na+ →H+) 5-8
2.04 Concentration of Regenerate Solution : NaCl: 8-10% ; HCl: 4-5%
2.05 Consumption of Regenerant: NaCl = Resin Vol x 0.10 – 0.15 Kg
2.06 Flow Rate of Regenerate Solution : 4-6 (m/hr)
2.07 Regenerate Contact time: 30-60 (minute)
2.08 Rinse Flow Rate : 12-20 (m/hr)
2.09 Rinse Time (minute): 10-30 (approx.)
2.10 Operating Flow Rate: 10-45(m/hr)
3.0 Application:
International gel type standard. Suitable for softening and demineralization
4.0 Packing:
Each PE bag, net weight: 25L or 1000 L
